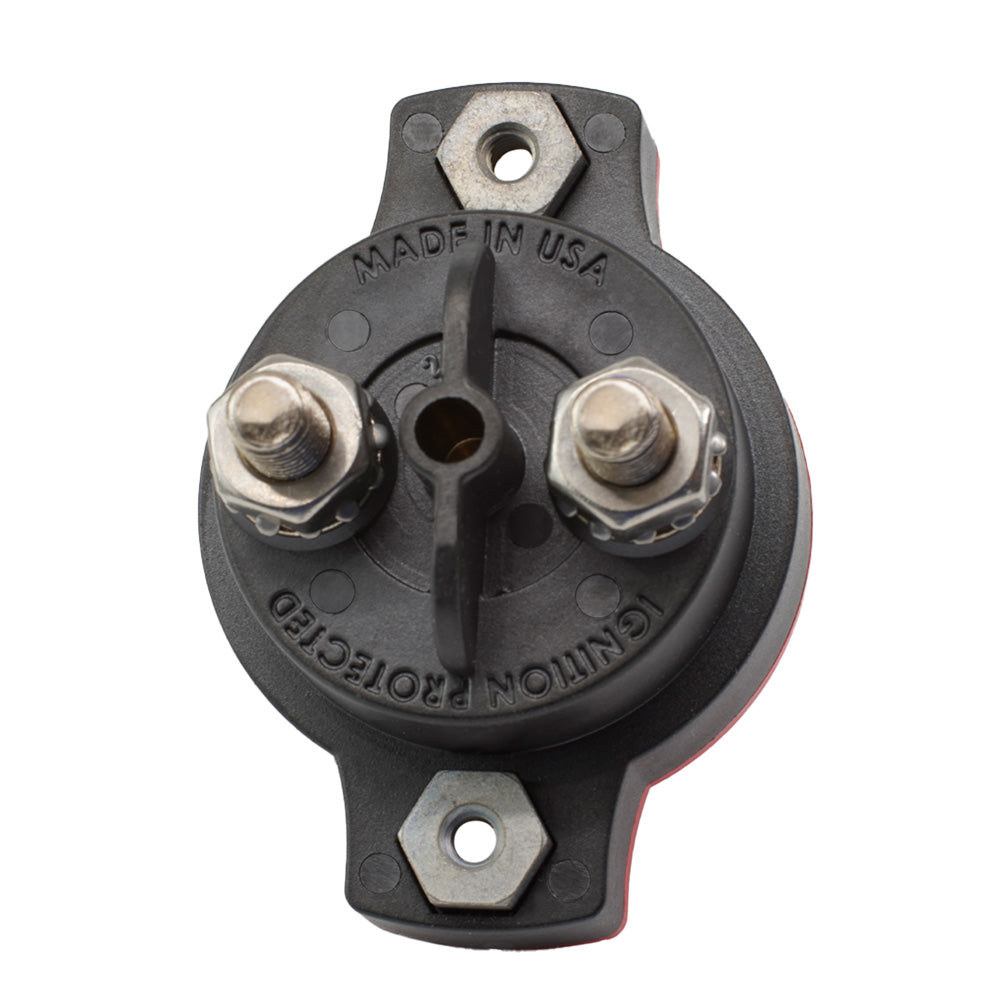

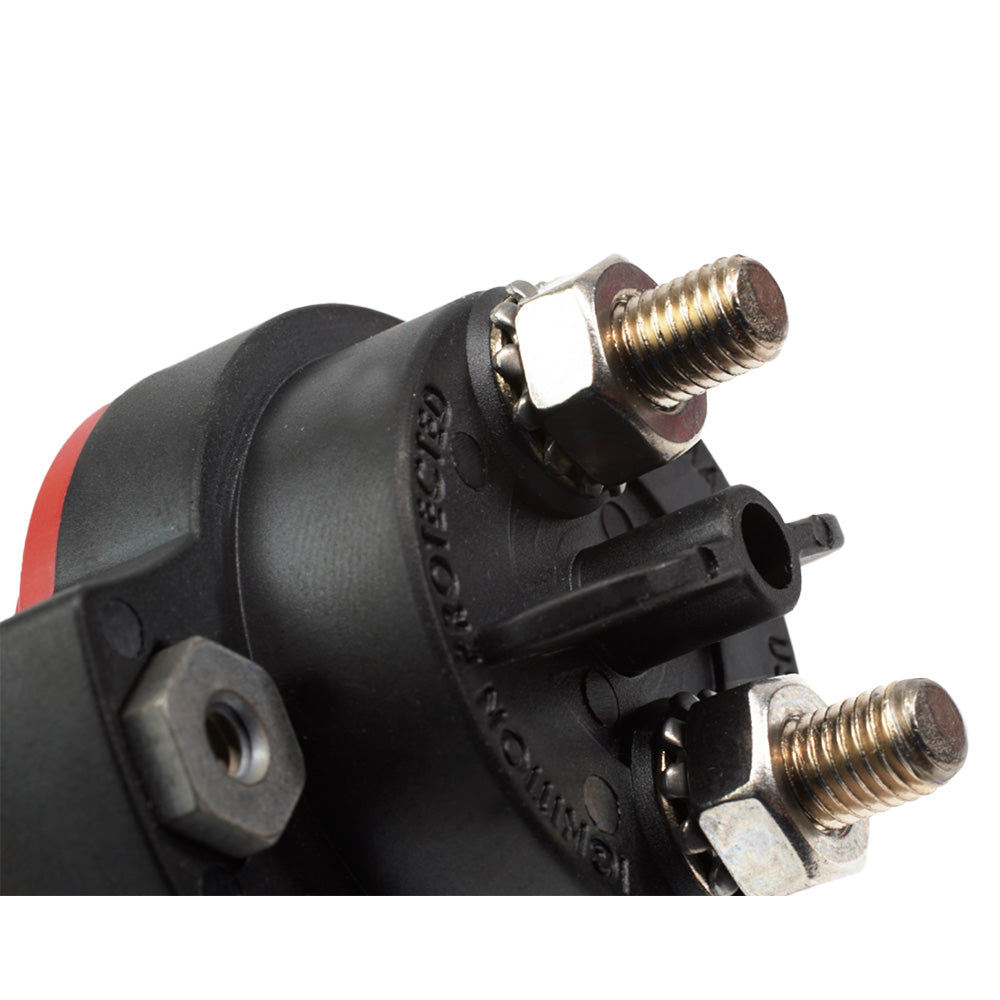

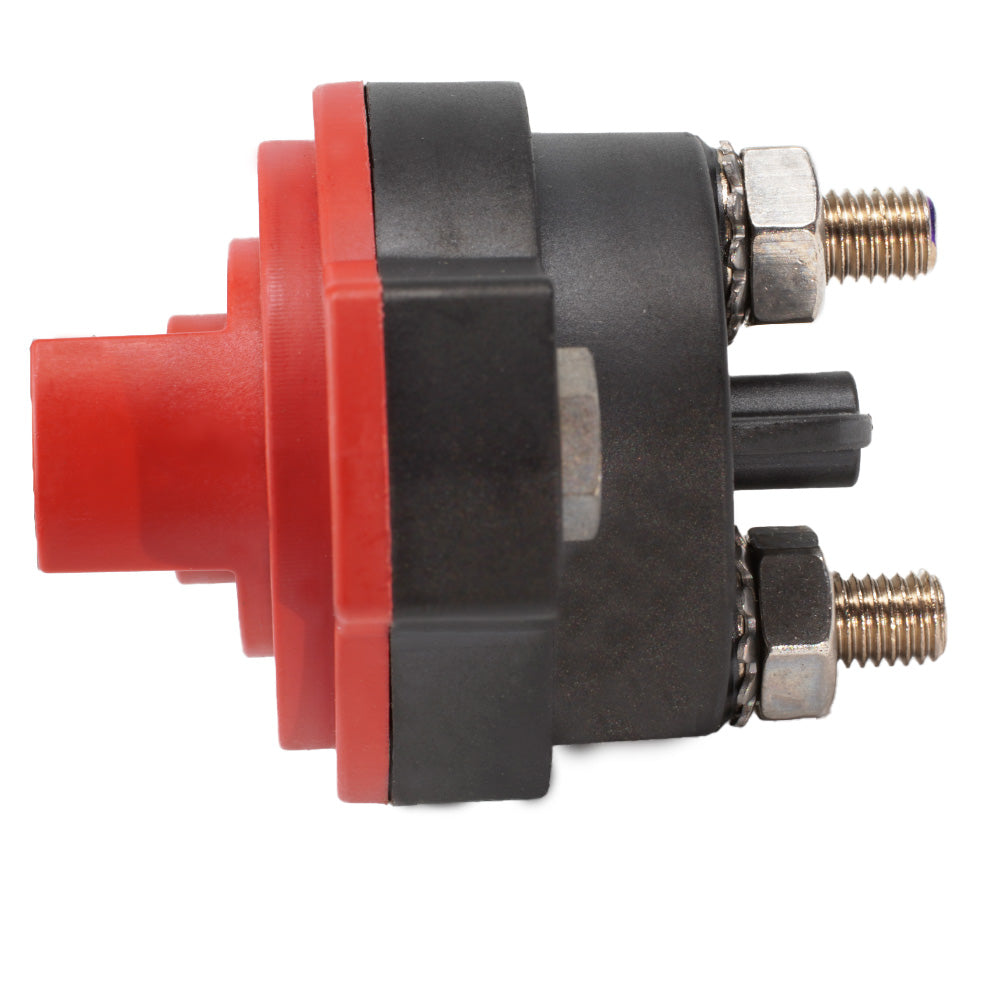

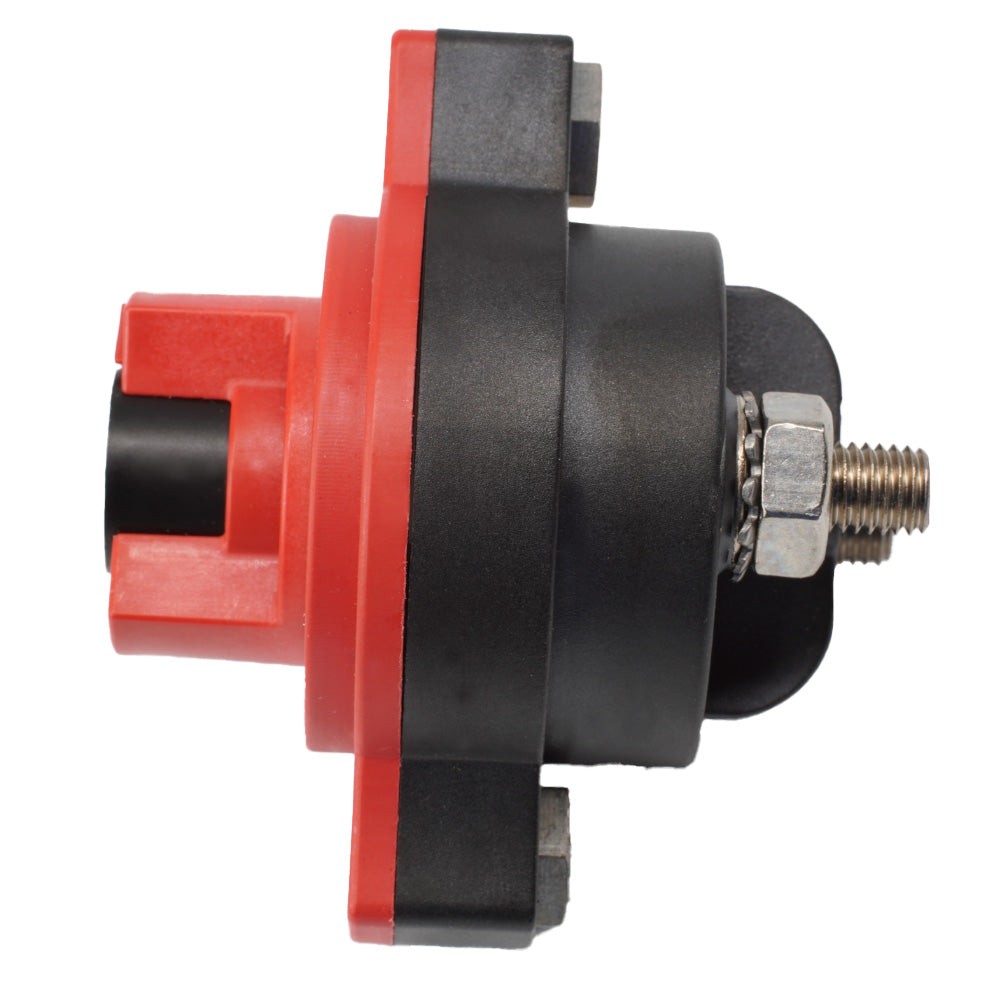

Egis 40A Panel Mount Mini Circuit Breaker [4701-40]

  • Sale
  • $38.81
  • Regular price $43.00
Shipping calculated at checkout.


40A Panel Mount Mini Circuit Breaker

This 40A Panel Mount Mini Circuit Breaker is a 2-in-1 circuit breaker/disconnect switch that incorporates traditional battery disconnect switching (non-engine) and circuit protection. Trolling motor circuit switching applications are what this switch is best used for.

Applications:

  • Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction
  • Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution
  • Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

  • IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
  • 42 Vdc rating - easily supports 12, 24, and 36V DC applications. Ideal for trolling motor switching applications
  • High electrical and manual switching endurance delivers 2,000 cycles at full current
  • High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power
  • 4-year warranty - Egis stands behind its product's ability to meet the user's needs

Specifications:

  • Continuous Current Amps: 40
  • Max Voltage: 42
  • CE Marked: Yes
  • Interrupt Current @14 VDC (Amps): 3,000
  • Cycle Switching Endurance: 4,000
  • Ingress Protection Rating: IP66

Focal Features

Easy ON/OFF Rotary Switch

Easy to operate and visually recognize switch position.

Stainless Steel Self- Locking Hardware

Corrosion and vibration resistance for harsh environment applications.

Weatherproof Construction

Sealed against dust and moisture penetration. High temp rated for all installation locations.

Compact Size

Fit more circuit switching/protection on a smaller panel!

Proudly Made in the USA

Made in the USA of high-quality components.

Ignition Protected

Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Amperage: 40a

Quick Guide (pdf)
