Scanstrut DS-H10-BLK Horizontal Cable Seal- Black *5-Pack [DS-H10-BLK-5]

  • Sale
  • $134.01
  • Regular price $164.75
Shipping calculated at checkout.


DS-H10-BLK Horizontal Cable Seal- Black *5-Pack

This horizontal cable seal from Scanstrut provides the ideal solution to waterproof cable routing and is perfect for installing solar panels, light bars, antenna and navigation light cables.  A tapered gland forms a watertight seal around the cable and a closed-cell foam gasket between the housing and the deck ensures a 100% watertight fitting.

Features:

  • Watertight installation - 100% waterproof with an IPX68 rating
  • Easy and reliable installation - each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
  • No Need to Remove Cable Connectors - split-seal option does not require connector removal during installation.
  • The low-profile construction is impact resistant and provides extra protection from water.

Technical Specifications:

  • Fits cable size (diameter) - .24" to .39" (6 - 10 mm)
  • Height - 1.06" (27 mm)
  • Width - 1.75" (44.5 mm)
  • Color - Black
  • Orientation - Horizontal
  • Material - Stainless Steel

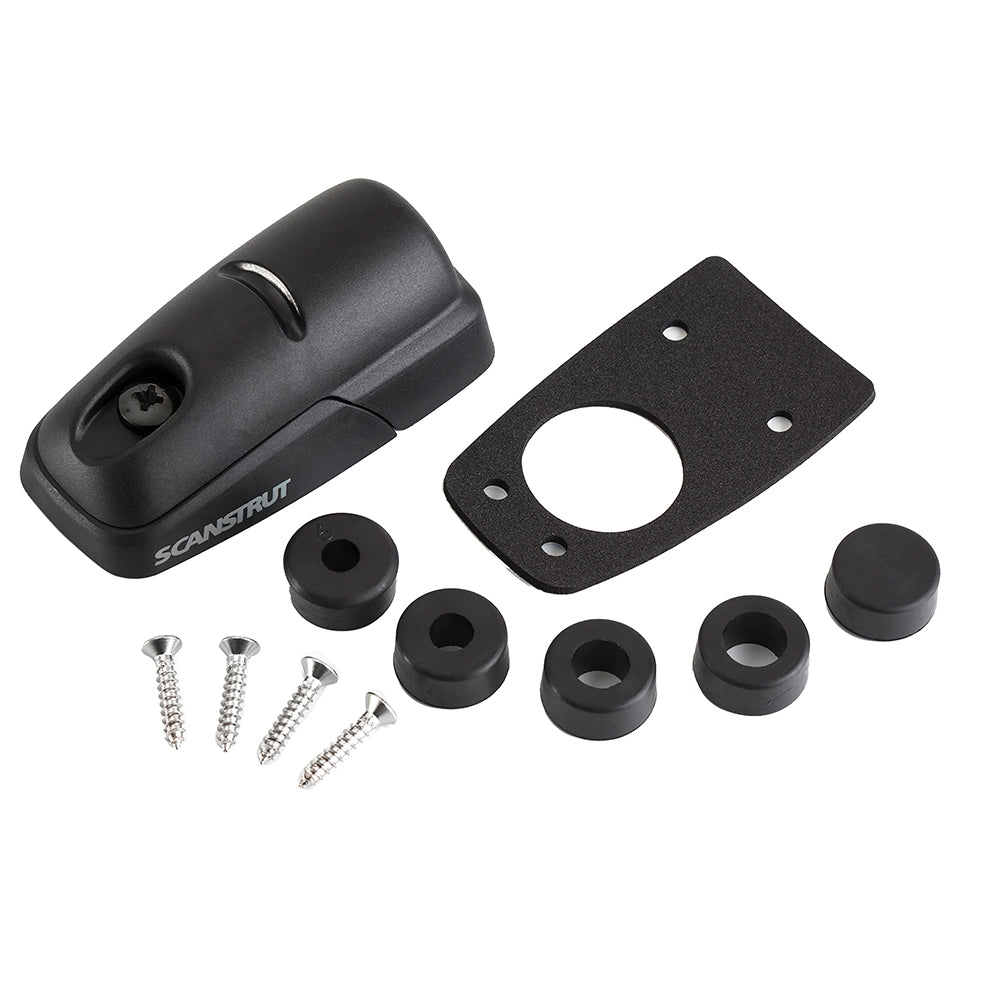

In the Box:

  • Cable seal
  • Mounting hardware
  • Installation manual

*Sold as an Five (5) Pack

Specifications:

  • Type: Deck Seal
  • Box Dimensions: 2"H x 4"W x 9"L WT: 1.75 lbs

Quick Guide (pdf)
Brochure (pdf)
