Scanstrut DS-H6-BLK Horizontal Cable Seal - Black *3-Pack [DS-H6-BLK-3]

$63.00 $51.24

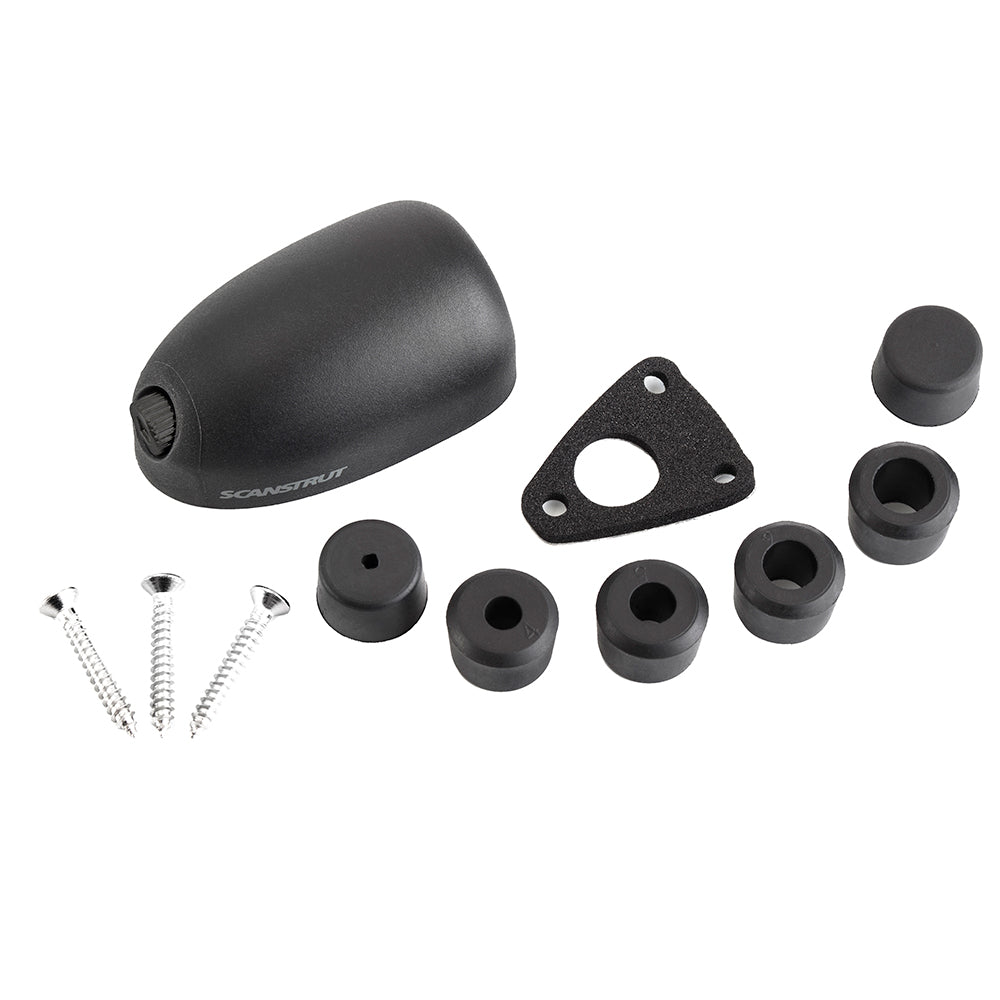

DS-H6-BLK Horizontal Cable Seal - Black *3-Pack

This horizontal cable seal from Scanstrut provides the ideal solution to waterproof cable routing and is perfect for installing solar panels, light bars, antennas, and navigation light cables.  A tapered gland forms a watertight seal around the cable and a closed-cell foam gasket between the housing and the deck ensures a 100% watertight fitting.

Features:

  • Watertight installation - 100% waterproof with an IPX68 rating
  • Easy and reliable installation - each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
  • No Need to Remove Cable Connectors - split-seal option does not require connector removal during installtion.
  • The low-profile construction is impact resistant and provides extra protection from water.

Technical Specifications:

  • Fits cable size (diameter) - .08" to .24" (2 - 6 mm)
  • Height - .79" (20 mm)
  • Width - 1.12" (28.5 mm)
  • Color - Black
  • Orientation - Horizontal
  • Material - Stainless Steel

In the Box:

  • Cable seal
  • Mounting hardware
  • Installation manual

*Sold as a Three (3) Pack

Specifications:

  • Type: Deck Seal
  • Box Dimensions: 1"H x 4"W x 9"L WT: 0.45 lbs

Quick Guide (pdf)
Brochure (pdf)
